Hypertherm Powermax85 SYNC
Hypertherm Powermax85 SYNC
- Ships by UPS Ground
- GFHQ CNC Com Cable included
- Questions? Talk to Garage Fab HQ
Shipping & pickup
Machines ship from our closest HQ (West Coast HQ in Las Vegas, NV or East Coast HQ in Clarksville, TN), priced from your ZIP, or you can pick up free at either one. Choose shipping or pickup above and it is added to your cart. Shipping is an estimate that we confirm after your order. START kits ship crated (pick up at your local terminal, or delivery to a business or home); picked-up kits come unassembled on a pallet, or pre-assembled and tested for $749.99.
Plasma cutters ship by UPS Ground. Accessories ship by parcel, priced by size. Ordering them with a machine we ship to you? We pack them in at no extra cost (not with pickup orders).
Need help choosing?
See every line side by side on our START vs CORE vs PRO comparison, or contact us and we'll help you pick the right machine for your shop.
The top of the lineup, built for heavy plate and full production. This system (Hypertherm part #087192) pairs the Powermax85 SYNC power supply, fully equipped for automation with a CPC port, voltage divider and serial port, and a 25 ft 180° SmartSYNC machine torch. Like every plasma cutter from Garage Fab HQ, it comes with our GFHQ CNC Com Cable, so you can connect it to your table controller right away.
The Powermax85 SYNC cuts 1" plate at production speed and handles 1-1/4" at 10 inches per minute. Its RFID SmartSYNC torch reads each single-piece cartridge and sets the amperage and mode automatically, so setup errors go away and cartridge changes take seconds. The system tells you when a cartridge is worn out. It also runs on almost any shop power, from 200V to 480V single-phase or 200V to 600V three-phase.
Cut Capacity (mild steel)
- Recommended: 1" at 20 inches per minute
- Also cuts 1-1/4" at 10 inches per minute
- Severance: 1-1/2" at 5 inches per minute
- Pierce: 3/4" (with automatic torch height control)
Key Features
- CPC port, voltage divider and RS-485 serial port for full CNC and torch height control integration
- RFID SmartSYNC machine torch and cartridges set amperage and process automatically
- Single-piece cartridges swap in seconds and eliminate part mix-ups
- End-of-life cartridge detection
- Works on 200–480V single phase or 200–600V three phase
- SpringStart technology for consistent, reliable arc starts
- 92% electrical efficiency
What's in the Box

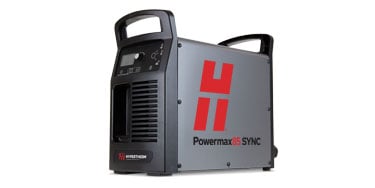

- Powermax85 SYNC power supply with CPC port, voltage divider and serial port
- GFHQ CNC Com Cable (included free with every GFHQ plasma cutter)

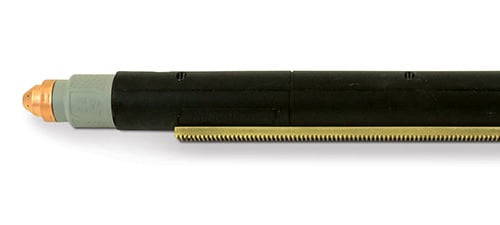

- 180° SmartSYNC machine torch with 25 ft lead
- Remote pendant
- 25 ft work cable with ground clamp
- Starter mechanized cartridges
- Operator and safety manuals
Specifications
- Input: 200–480V single phase, or 200–600V three phase, 50/60 Hz
- Input current (240V): 58A single phase / 35A three phase
- Output: 25–85A
- Duty cycle: 60% at 85A (230–600V three phase); 50% at 85A (240V single phase); 100% at 66A
- Air: clean, dry, oil-free air or nitrogen at 7.5 scfm @ 85 psi
- Dimensions: 19" D × 9.2" W × 17" H
- Weight: 67 lb with 25 ft torch
- Generator: 20 kW (25 kVA) for full 85A output
- Warranty: 6 years on the power supply, 1 year on the torch
Good to Know
- Use clean, dry air. Moisture and oil in the air line shorten cartridge life.
- SYNC systems only work with SmartSYNC torches; older Powermax85 torches will not connect.
