Everlast PowerPlasma 62i
Everlast PowerPlasma 62i
- Ships by UPS Ground
- GFHQ CNC Com Cable included
- Questions? Talk to Garage Fab HQ
Shipping & pickup
Machines ship from our closest HQ (West Coast HQ in Las Vegas, NV or East Coast HQ in Clarksville, TN), priced from your ZIP, or you can pick up free at either one. Choose shipping or pickup above and it is added to your cart. Shipping is an estimate that we confirm after your order. START kits ship crated (pick up at your local terminal, or delivery to a business or home); picked-up kits come unassembled on a pallet, or pre-assembled and tested for $749.99.
Plasma cutters ship by UPS Ground. Accessories ship by parcel, priced by size. Ordering them with a machine we ship to you? We pack them in at no extra cost (not with pickup orders).
Need help choosing?
See every line side by side on our START vs CORE vs PRO comparison, or contact us and we'll help you pick the right machine for your shop.

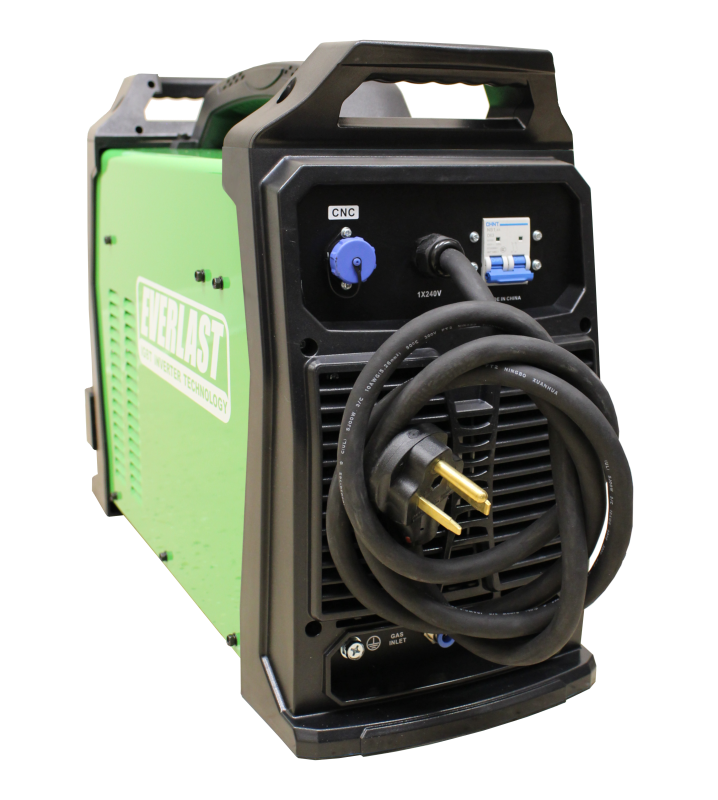

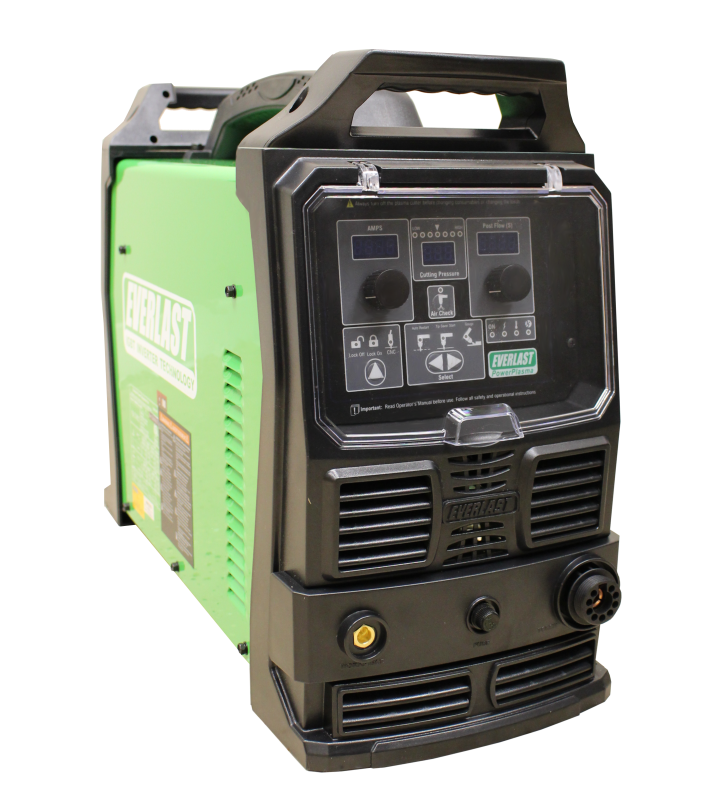

Get your plasma table cutting with a machine that's ready to go out of the box. This package pairs the Everlast PowerPlasma 62i, a 60-amp IGBT inverter plasma cutter, with a dedicated CNC machine torch, and we've added our GFHQ CNC Com Cable so you can connect it to your table controller right away.
It's light enough to move around the shop and tough enough for everyday production work, whether you're cutting parts on weekends or running a small fab shop. The blowback pilot arc starts without high frequency, so it won't interfere with your table's electronics, and it cuts cleanly through rusty or painted steel. A 3-second tip saver shuts the pilot arc off when you're not cutting, so your consumables last longer.
Cut Capacity (CNC)
- Up to 3/8" for everyday production cutting (best speed and quality)
- Up to 3/4" clean cut (edge start)
- Up to 1" severance at reduced speed
- Pierces up to 5/16" (edge start recommended at 3/8" and thicker)
Key Features
- CNC interface port for plasma table use
- 60% duty cycle at 60A; 100% at 50A
- Blowback pilot arc start (no high frequency)
- 3-second pilot arc tip saver
- Adjustable post-flow timer
- Front-mounted air pressure gauge and low-air safety
- Over-current and duty cycle protection with a warning light
- Cuts steel, stainless, aluminum, copper, titanium, cast iron and more

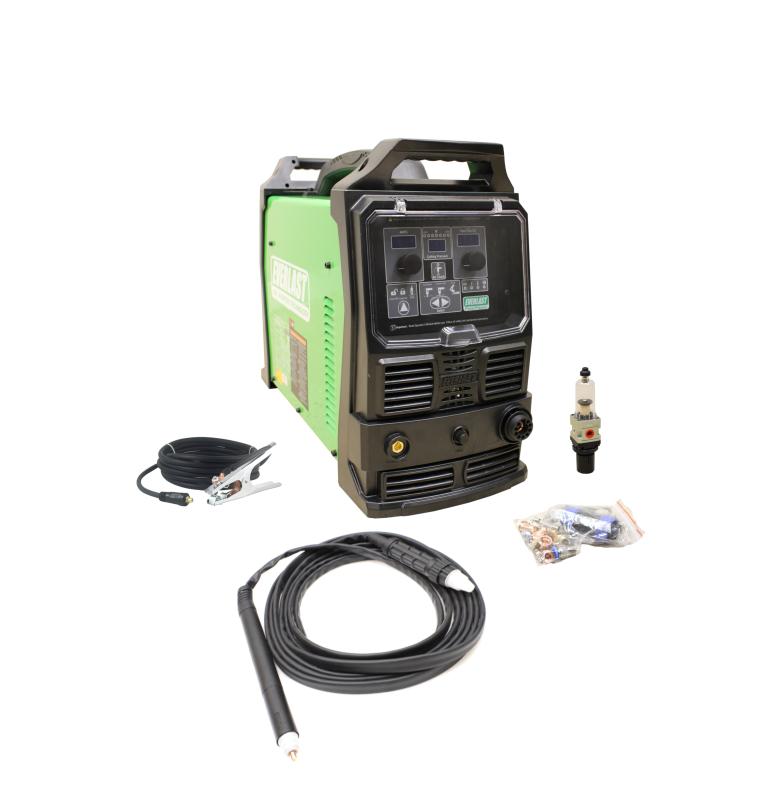

What's in the Box
- PowerPlasma 62i power unit
- GFHQ CNC Com Cable
- PTM-60 CNC machine torch with 24 ft lead and Euro-style quick connect
- Ground clamp with 10 ft cable
- Air pressure regulator / water trap
- Starter consumables: 5 electrodes and 5 nozzles (1.1mm)
A hand-held torch is not included, but can be purchased separately.
Specifications
- Input: 220/240V, single phase
- Output: 20–60A
- Max input amps: 41A inrush / 32.4A rated
- Recommended air: 75 psi at the torch; compressor 6 CFM @ 90 psi with a 30-gallon tank
- Dimensions: 25" × 9.5" × 15"
- Weight: 53 lb
- Manufacturer warranty: 5 years
Good to Know
- A separate inline air dryer is required. The included water trap does not remove all moisture, and wet air shortens consumable life and can damage the torch.
- Generator use requires a "clean power" generator rated for at least 10,000 surge watts.
