Everlast PowerPlasma 82i
Everlast PowerPlasma 82i
- Ships by UPS Ground
- GFHQ CNC Com Cable included
- Questions? Talk to Garage Fab HQ
Shipping & pickup
Machines ship from our closest HQ (West Coast HQ in Las Vegas, NV or East Coast HQ in Clarksville, TN), priced from your ZIP, or you can pick up free at either one. Choose shipping or pickup above and it is added to your cart. Shipping is an estimate that we confirm after your order. START kits ship crated (pick up at your local terminal, or delivery to a business or home); picked-up kits come unassembled on a pallet, or pre-assembled and tested for $749.99.
Plasma cutters ship by UPS Ground. Accessories ship by parcel, priced by size. Ordering them with a machine we ship to you? We pack them in at no extra cost (not with pickup orders).
Need help choosing?
See every line side by side on our START vs CORE vs PRO comparison, or contact us and we'll help you pick the right machine for your shop.

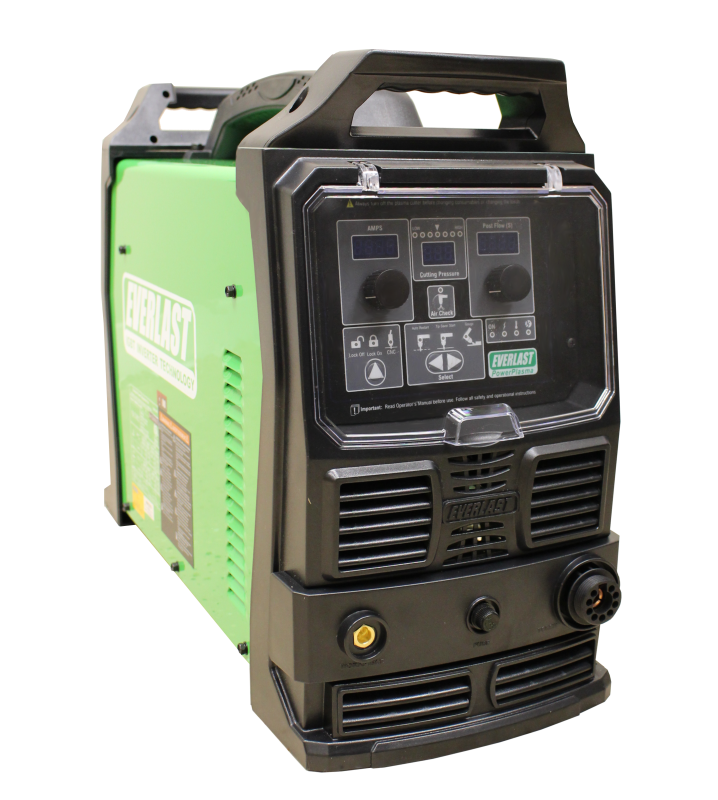

Built for shops that want real cutting power on the table without outgrowing their machine. This package pairs the Everlast PowerPlasma 82i, an 80-amp IGBT inverter plasma cutter, with a dedicated PTM-80 CNC machine torch, and every plasma cutter from Garage Fab HQ comes with our GFHQ CNC Com Cable so you can connect it to your table controller right away.
The 82i handles 5/8" plate every day and makes quality cuts through 1" at slower speeds. It still runs on standard 240V shop power, so it fits right in a home garage as well as a production fab shop. The Italian-designed PTM-80 torch uses a back-striking blowback start for longer consumable life, and it works with both shielded and unshielded consumables. The high-frequency-free start won't interfere with your table's electronics.
Cut Capacity (CNC)
- Up to 5/8" for everyday production cutting (best speed and quality)
- Up to 1" clean cut (edge start)
- Up to 1-3/16" severance at reduced speed
- Pierces 1/2" to 5/8" with automatic torch height control (THC)
Key Features

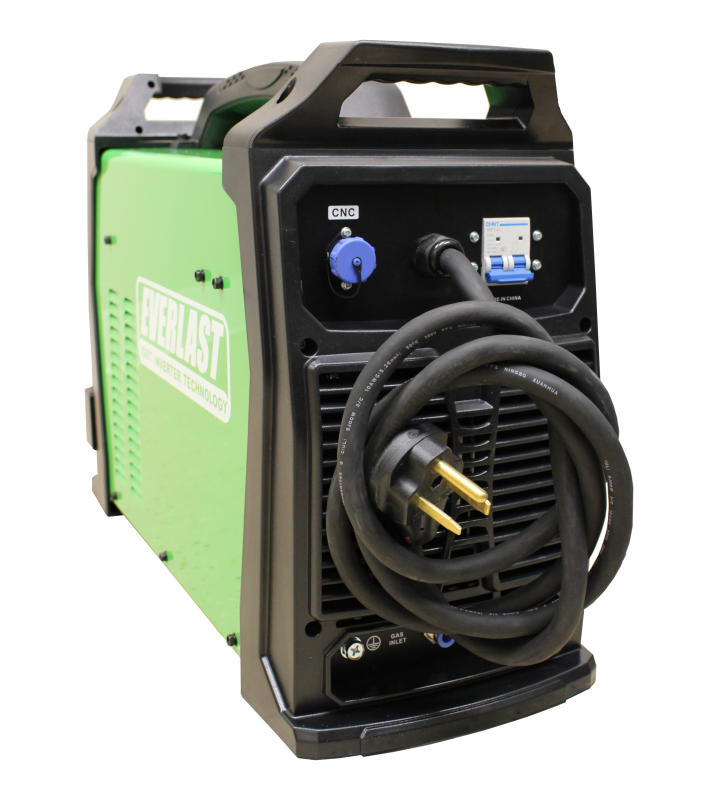

- Built-in CNC interface port for plasma table use
- 60% duty cycle at 80A; 100% at 63A
- Blowback pilot arc start (no high frequency) for rusty and painted metal

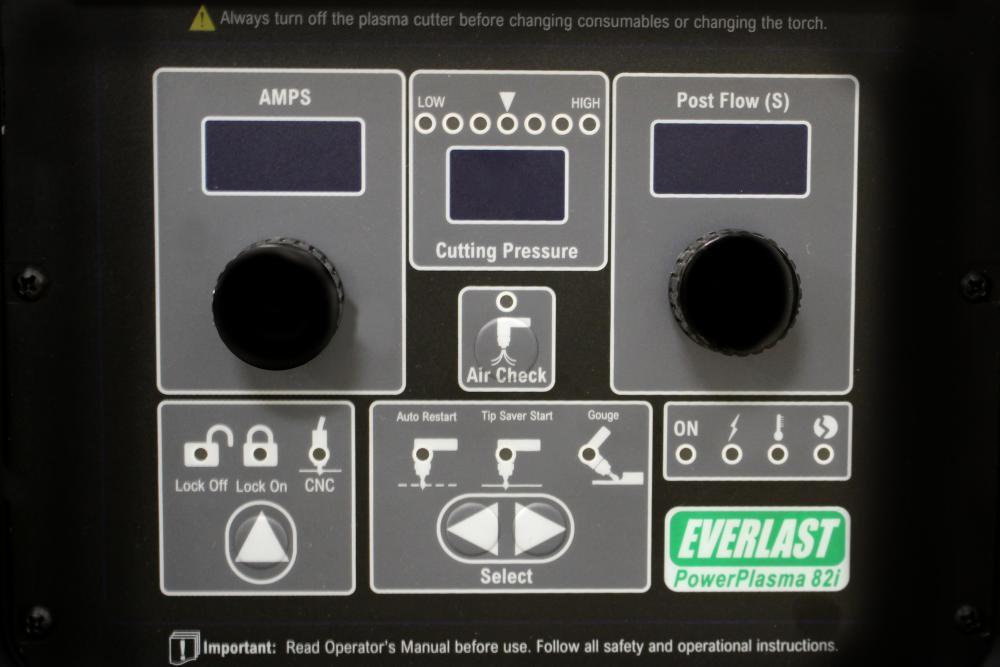

- 3-second pilot arc tip saver
- Adjustable post-flow up to 50 seconds for longer torch and consumable life
- Front-mounted air pressure gauge and low-air safety
- Over-current and duty cycle protection with a warning light
- Cuts steel, stainless, aluminum, copper, titanium, cast iron and more

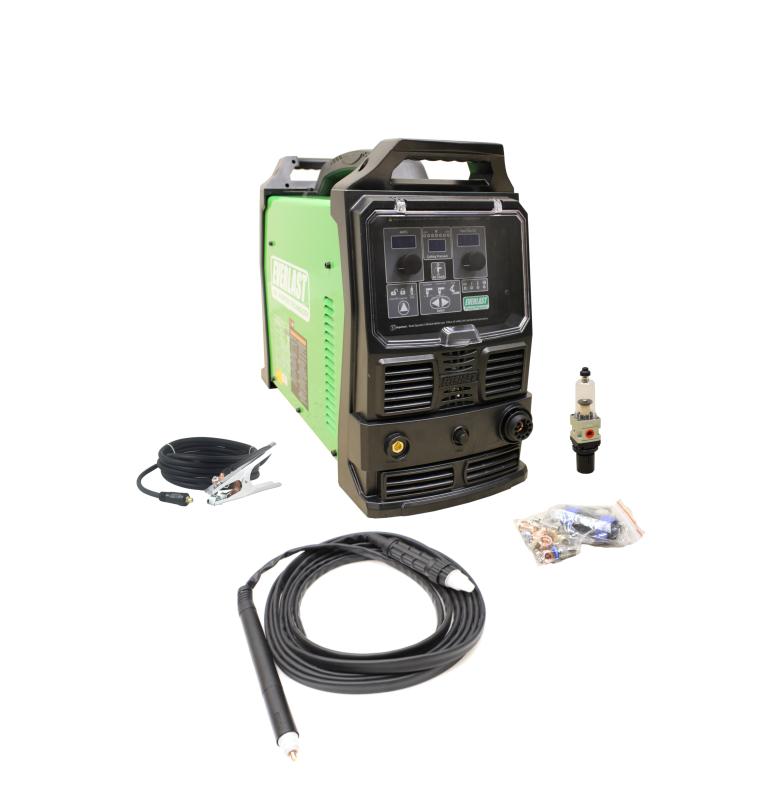

What's in the Box
- PowerPlasma 82i power unit
- GFHQ CNC Com Cable (included free with every GFHQ plasma cutter)
- PTM-80 CNC machine torch with 24 ft lead and Euro-style quick connect
- Ground clamp
- Air pressure regulator / water trap
- 12-pin CNC connector
- Starter consumables: 5 electrodes and 5 nozzles (1.2mm)
A hand-held torch is not included, but can be purchased separately.
Specifications
- Input: 220/240V, single phase
- Output: 20–80A
- Max input amps: 58A inrush / 45.2A rated
- Recommended air: 75 psi; compressor 7 CFM @ 90 psi with a 60-gallon tank
- Dimensions: 25" × 9.5" × 15"
- Weight: 53 lb
- Manufacturer warranty: 5 years
Good to Know
- A separate inline air dryer is required. The included water trap does not remove all moisture, and wet air shortens consumable life and can damage the torch.
- Generator use requires a "clean power" generator rated for at least 15,000 surge watts.
