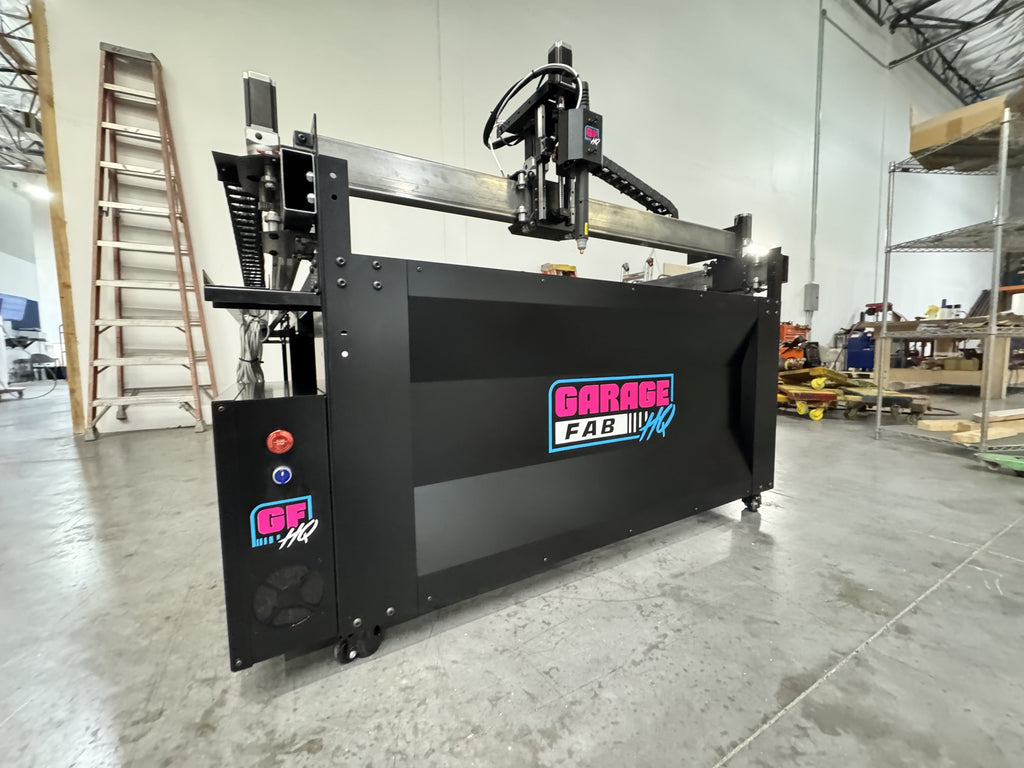

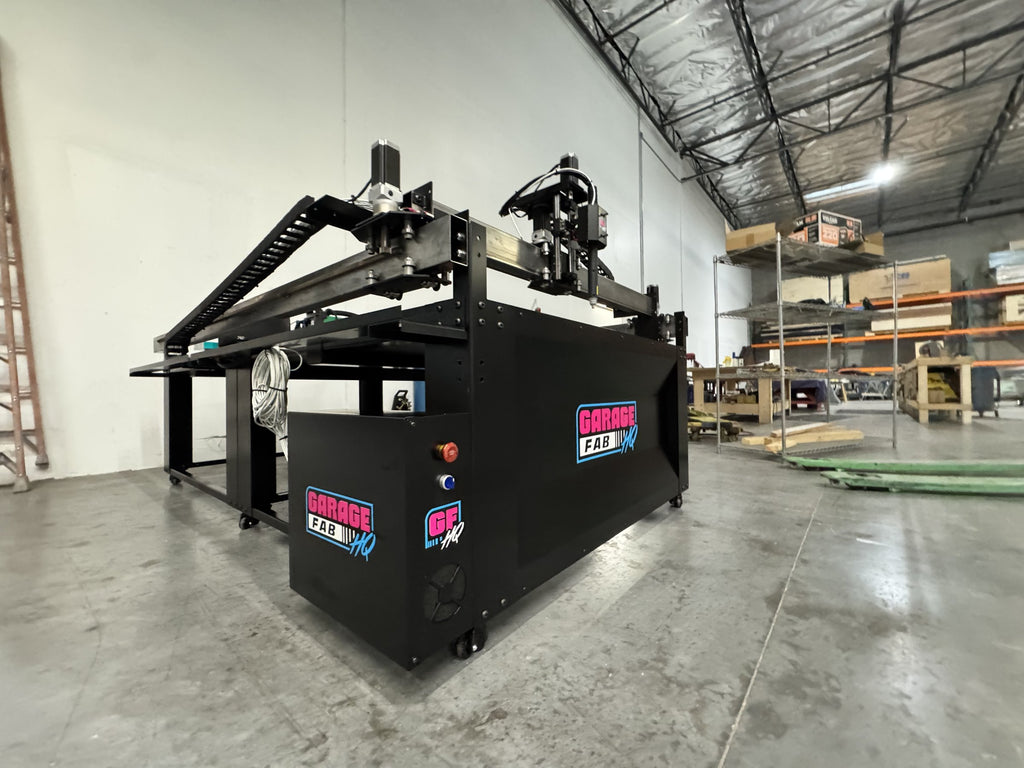

START Plasma Table – Raised Gantry

Get into CNC plasma cutting with a complete, heavy-duty machine platform built for real shop use. The GFHQ START CNC Plasma Table gives you a capable CNC plasma table foundation without paying to ship a fully assembled machine. It's built for buyers who want professional machine features, manageable shipping costs and the satisfaction of assembling their own system. Designed and built by Garage Fab HQ.

Every kit comes with a detailed assembly and how-to manual, plus YouTube videos on setup, everyday use and improving your machine over time.

Machine Structure

• Modular frame design: ships in manageable sections so you can assemble the machine yourself, helping reduce shipping and factory-assembly costs.
• Heavy-duty steel frame: built to support the water pan, cutting material and daily shop use.
• Integrated water-pan supports: the frame properly supports the water pan across the whole cutting area.
• Heavy-duty caster wheels: move the machine when needed for shop layout changes, cleaning or service access.
• Adjustable leveling foot pads: level and stabilize the table once it's in place, even on uneven shop floors.

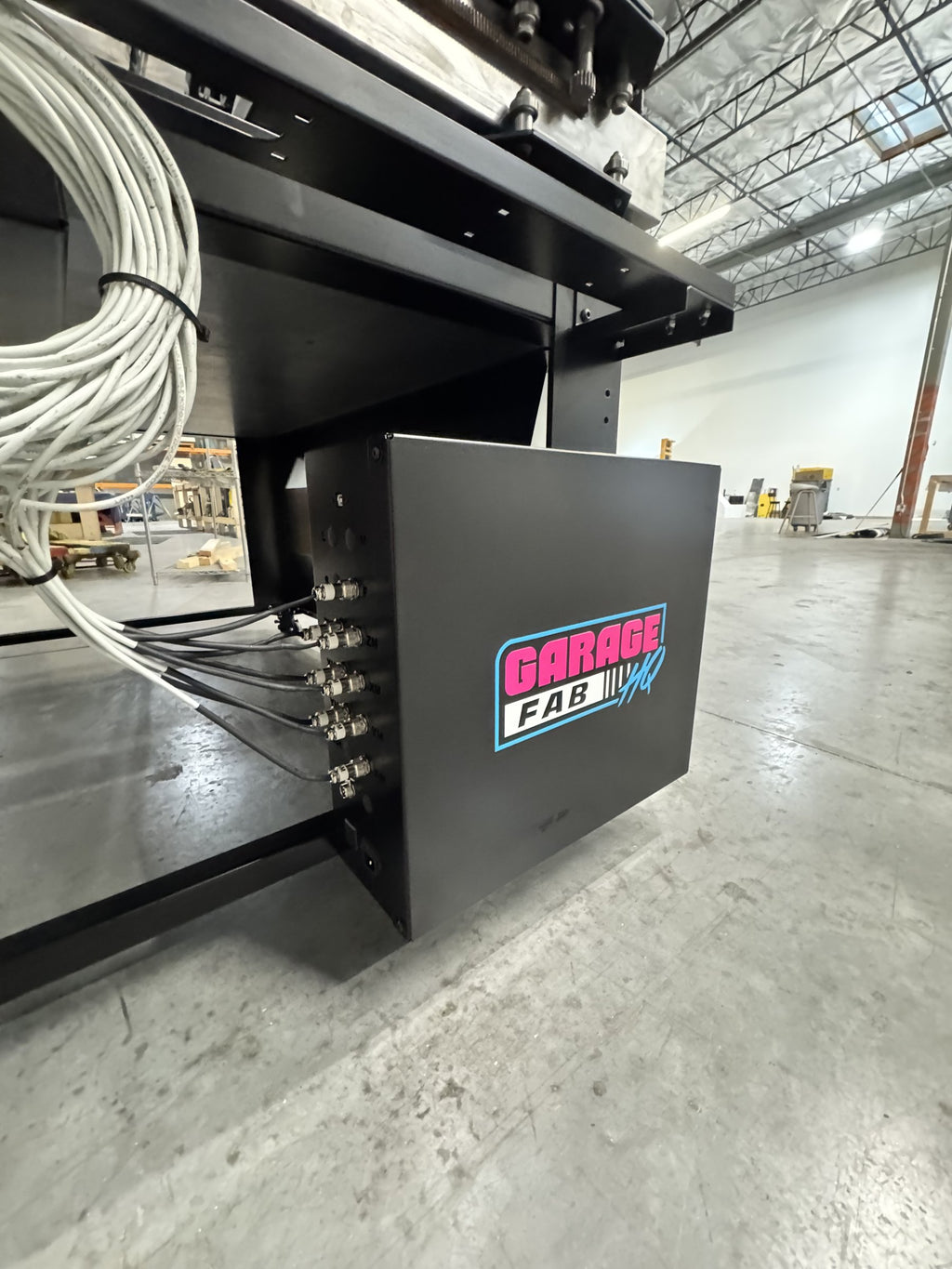

• Machine-mounted control system: controls and cable management are fixed to the machine, keeping the installation organized with no loose wires after setup.

Cutting Bed & Water Table

• Water pan included: helps capture plasma dust and sparks while reducing smoke and heat during cutting.
• Curved slats included: support your material while letting slag and small drops fall away from the workpiece.
• Water-pan and slat support system: heavy-duty frame support under the cutting bed for long-term durability.
• 5 inches of clearance below the Z axis: useful room for material, torch travel and fixtures.

A water table helps control smoke, dust, heat and material distortion while you cut.

Motion & Drive System

• Direct-drive rack and pinion on X and Y: fast, reliable long-axis travel that's easy to service.
• Ball-screw Z axis: smooth, controlled vertical torch movement.
• 5:1 planetary gear reduction on X and Y: more usable torque and finer motion resolution for more controlled cuts.
• Advertised cutting area plus 2 inches of travel in X and Y: extra room for edge access, squaring material and setup.
• Automatic homing on X, Y and Z: the machine finds a repeatable home position every time it starts.
• Programmed travel limits: help protect the machine from unintended overtravel.

Automated Cutting Features

• Automatic torch touch-off on Z: finds the material height before each cut for consistent pierce height and setup.
• Automatic Torch Height Control (THC): continuously adjusts torch height while cutting to keep a consistent cut gap, even when material warps or moves.
• Ohmic sensing for dry setups: when you run without water in the pan, it detects the material surface for automatic torch-height referencing.
• Wireless gaming-style remote: jog and position the machine wirelessly while loading, squaring and setting up material.

Software & Startup Package

Every START machine includes a USB drive loaded with the core software and starter designs you need to begin creating and cutting parts:

• MyPlasm control software
• QCAD
• Inkscape
• 500+ sample DXF projects

You get a library of ready-to-cut projects on day one, plus the software to draw, edit and prepare your own designs.

Choose Your Computer

• Provide your own PC: install from the included USB drive.
• Pre-programmed laptop: a ready-to-run laptop configured for the machine, reducing setup time.
• Pre-programmed PC kit: a desktop-style computer package (mini PC with monitor, keyboard and mouse) prepared for machine operation.

Optional Add-Ons

• Bolt-on laptop or PC stand: a machine-mounted workstation for your control computer.
• Plasma-cutter shelf (coming soon): a dedicated mounting spot for your plasma cutter.
• Air-filter kit (coming soon): cleaner, drier air for longer consumable life and better cut quality.

Add a Plasma Cutter

Choose your plasma cutter from us and it comes with the GFHQ CNC Com Cable, ready to connect to your table.

Available in 8 sizes, from a compact 3' x 3' up to a full 5' x 10'.

Warranty

5 years on the frame and mechanical components, and 90 days on electronics, wiring and computers. Extended 1-, 2- and 3-year electronics coverage is available. Plasma cutters carry their manufacturer's warranty. Full warranty details

Shipping or Pickup

Your kit ships crated from our closest HQ (West Coast HQ in Las Vegas, NV or East Coast HQ in Clarksville, TN), or you can pick it up free at either HQ. Choose above and enter your ZIP code: the shipping price is added to your cart with your kit. 4' x 8', 4' x 10' and 5' x 10' kits ship in 2 crates. Shipping & Logistics details
